wick-a11y is a Cypress plugin designed for performing configurable accessibility tests. It allows you to easily incorporate accessibility checks into your End-to-End tests, log detailed information in the Cypress log, and generate HTML documents with screenshots of each violation for easier identification and resolution of accessibility issues, all out-of-the-box

For a detailed guide on setting up and using this plugin to maximize its benefits, please refer to my articles:

• "WICK-A11Y Cypress Plugin: Your Unstoppable Ally for Smashing Accessibility Barriers, Cool as John Wick!"
• "WICK-A11Y "Chapter" 1.2.1 - Voice Support: The Accessibility Cypress Plugin that Talks More Than John Wick in His Movies"

Or the video:

• "WICK-A11Y ACCESSIBILITY PLUGIN VIDEO TUTORIAL"

• Comprehensive Accessibility Analysis: Leverages cypress-axe plugin and axe-core® for thorough accessibility checks. Axe-core® https://go.sniply.page/render-assets/?url=https://github.com/dequelabs/axe-core is a trademark of Deque Systems, Inc. https://www.deque.com/ in the US and other countries.

• Cypress Command: Use the custom command cy.checkAccessibility() to run checks smoothly.

• Configurable: Customize to include specific impact levels, rules, and guidelines.

• Summary of Violations: Provides a summary for each test in the Cypress Log, detailing accessibility violations categorized by their severity (NEW in v1.2.0).

• Detailed Violation Information:

  • Displays violations details in the Cypress log and browser console.
  • Graphically shows affected DOM elements on the page, enclosing them in a colored box based on severity.

• Custom Styling: Supports custom styling for accessibility issues based on severity level at the test level.

• Interactive Console:

  • Hovering over a violation in the Cypress Log highlights the affected DOM element on the page, and clicking it shows detailed issue information in the browser console.
  • Hovering over a DOM element with a violation on the web page in the Cypress runner highlights it graphically and shows a tooltip with the violation information.

• HTML Reports: Generates HTML reports with details of the violations and how to fix them, including screenshots for visual reference, all out-of-the-box.

• Voice Support: Provides audible information for accessibility issues at the suite level, test level, violation type level, and DOM element level, helping users identify issues through voice feedback (NEW in v1.2.0).

✔️ Before launching the accessibility analysis, ensure what you want to analyze is fully rendered on the page.

✔️ The plugin analyzes DOM elements that are visible in the browser viewport as per the axe-core® plugin (it will not include hidden elements).

npm install wick-a11y --save-dev

• Compatible with all versions of Cypress v12.0.0 and greater.
• Relies on cypress-axe (≥ 1.5.0) and axe-core® for accessibility analysis.

• First, in your cypress.config.js file import wick-a11y/accessibility-tasks, and add the line addAccessibilityTasks(on) within the setupNodeEvents function, to include the accessibility tasks:

const { defineConfig } = require("cypress");

// Import the accessibility tasks from wick-a11y plugin
const addAccessibilityTasks = require('wick-a11y/accessibility-tasks');

module.exports = defineConfig({
  e2e: {
    setupNodeEvents(on, config) {
      // Add accessibility tasks
      addAccessibilityTasks(on);
    },

    // ... rest of the configuration
  },
});

• Then import the custom commands in your test file or your cypress/support/e2e.js file:

import 'wick-a11y';

• 🔶 Accessibility HTML reports will be generated in the folder cypress/accessibility by default. This folder can be changed by including the configuration parameter accessibilityFolder in cypress.config.js.

module.exports = defineConfig({
  // [...]
  accessibilityFolder: 'cypress/your-accessibility-reports-folder',
  // [...]
});

• 🔶 By default, the voice feature is disabled. To enable it, set the Cypress environment variable enableAccessibilityVoice to true. This will only take effect when you execute tests in the Cypress runner (npx cypress open). You can enable the voice feature by setting this environment variable in three different ways:

  1. Including it within the env property in the cypress.config.js file

  module.exports = defineConfig({
        // [...]
        env: {
              enableAccessibilityVoice: true
        }
        // [...]
  });

  2. Including it in the cypress.env.json file

  {
        "enableAccessibilityVoice": true
  }

  3. Providing it as a command line argument --env in the terminal when opening the Cypress runner.

  npx cypress open --env enableAccessibilityVoice=true

Cypress custom command to check the accessibility of a given context using axe-core®. Only considers DOM elements that are visible on the screen. For details on parameters and options, refer to Axe-core® Documentation, Axe-core® GitHub, and cypress-axe NPM.

• context: (optional) Defines the scope of the analysis. Can be a CSS Selector, a DOM Element, or an Object. When context is an Object, it could have the properties:

  • exclude: (optional) From axe-core® - Elements that should not be tested. Format: CSS Selector or Array of CSS selectors.

    E.g.1 'button' equivalent to ['button'].

    E.g.2 'input, .container, [data-cy="submission"]' equivalent to ['input', '.container', '[data-cy="submission"]'].

  • include: (optional) From axe-core® - Elements that should be tested. Format: CSS Selector or Array of CSS selectors.

    E.g. '[data-cy="header"]'

  • fromFrames: (optional) From axe-core® - An object with a fromFrames property to specify frames that should be tested.

  • fromShadowDom: (optional) From axe-core® - An object with a fromShadowDom property to specify shadow DOM elements that should be tested.

• options: (optional) Object with options to configure the accessibility check.

  • generateReport: (optional) From WICK-A11Y - Generate a detailed report.

    Default: true.

  • impactStyling: (optional) From WICK-A11Y - An object with an entry for each impact level you would like to override the plugin defaults ('critical', 'serious', 'moderate', 'minor').

    Each impact level entry may have two properties: 'icon', which specifies the icon to use for that type of violation in the Cypress runner, and 'style', which specifies the CSS style to apply to the HTML element bounding box showing the violation on the page. The styles passed in this option will override the default ones used by the plugin.

    Default styles:

    {
         critical: { icon: '🟥', style: 'fill: #DE071B; fill-opacity: 0; stroke: #DE071B; stroke-width: 10;' },
         serious:  { icon: '🟧', style: 'fill: #FFA66A; fill-opacity: 0; stroke: #FFA66A; stroke-width: 10;' },
         moderate: { icon: '🟨', style: 'fill: #ECDE05; fill-opacity: 0; stroke: #ECDE05; stroke-width: 10;' },
         minor:    { icon: '🟦', style: 'fill: #4598FF; fill-opacity: 0; stroke: #4598FF; stroke-width: 10;' },
         fixme:    { icon: '🛠️'}
    }

  • includedImpacts: (optional) From CYPRESS-AXE - List of impact levels to include in the analysis. Possible impact values are 'minor', 'moderate', 'serious', or 'critical'.

    Default: ['critical', 'serious'].

  • retries: (optional) From CYPRESS-AXE - Number of times to retry the check if there are initial findings.

    Default: 0.

  • interval: (optional) From CYPRESS-AXE - Number of milliseconds to wait between retries.

    Default: 1000.

  • runOnly: (optional) From axe-core® - List to specify which rules are executed.

    Default: ['wcag2a', 'wcag2aa', 'wcag21a', 'wcag21aa', 'best-practice'].

    ⚠️ IMPORTANT: You must include all the rules (tags) that you want to execute in your analysis in this list.

    For example, if you want to run WCAG 2.1AA and all the previous versions of that standard (WCAG 2.0A, WCAG 2.0AA, WCAG 2.1A), you need to list them explicitly. Otherwise, only the rules specific to WCAG 2.1AA will be executed.

  • rules: (optional) From axe-core® - Enable or disable rules using the enabled property.

    E.g. { 'color-contrast': { enabled: false }, 'valid-lang': { enabled: false } }.

  • reporter: (optional) From axe-core® - Which reporter to use.

    E.g. 'v2'.

  • resultTypes: (optional) From axe-core® - Limit which result types are processed and aggregated. This can be useful for improving performance on very large or complicated pages when you are only interested in certain types of results.

    E.g. ['violations', 'incomplete', 'inapplicable'].

  • selectors: (optional) From axe-core® - Return CSS selector for elements, optimized for readability.

    Default: true.

  • ancestry: (optional) From axe-core® - Return CSS selector for elements, with all the element's ancestors.

    Default: false.

  • xpath: (optional) From axe-core® - Return xpath selectors for elements.

    Default: false.

  • absolutePaths: (optional) From axe-core® - Use absolute paths when creating element selectors.

    Default: false.

  • iframes: (optional) From axe-core® - Tell axe to run inside iframes.

    Default: true.

  • elementRef: (optional) From axe-core® - Return element references in addition to the target.

    Default: false.

  • frameWaitTime: (optional) From axe-core® - How long (in milliseconds) axe waits for a response from embedded frames before timing out.

    Default: 60000.

  • preload: (optional) From axe-core® - Any additional assets to preload before running rules.

    Default: true.

  • performanceTimer: (optional) From axe-core® - Log rule performance metrics to the console.

    Default: false.

  • pingWaitTime: (optional) From axe-core® - Time in milliseconds before axe-core® considers a frame unresponsive.

    Default: 500.

Example: Disable report, include only critical, serious, and moderate violations, and apply only the standards WCAG 2.0A, WCAG 2.0AA, and Best Practices.

cy.checkAccessibility(null, {
  generateReport: false,
  includedImpacts: ['critical', 'serious', 'moderate'],
  runOnly: ['wcag2a', 'wcag2aa', 'best-practice']
});

Example: Use custom styles for accessibility violations with serious, moderate, and minor severity levels, and use a custom icon for "fixme". For critical violations, the default style will be used.

const customImpactStyling = {
  serious:  { icon: '🟢', style: 'fill: #42C600; fill-opacity: 0; stroke: #42C600; stroke-width: 7;' },
  moderate: { icon: '🟣', style: 'fill: #886DE7; fill-opacity: 0.3; stroke: #886DE7; stroke-width: 6; stroke-dasharray: 5,3;' },
  minor:    { style: 'fill: #4598FF; fill-opacity: 0; stroke: #4598FF; stroke-width: 14; ' },
  fixme:    { icon: '🪓' }
 }

  cy.checkAccessibility(null, { impactStyling: customImpactStyling, includedImpacts: ['critical', 'serious', 'moderate', 'minor'] })

Basic Usage

In this basic usage example, the cy.checkAccessibility() function is called without parameters, so it will perform an accessibility analysis with the default configuration:

• Analyze the entire page document.
• Include elements with impact levels 'critical' and 'serious'.
• Run the rules for WCAG 2.0 Level A, WCAG 2.0 Level AA, WCAG 2.1 Level A, WCAG 2.1 Level AA, and best practices.
• Generate an HTML report for the identified violations.

⚠️ Note: Accessibility analysis can take some time, so it is recommended to increase the defaultCommandTimeout when running an accessibility test. You can configure this timeout either directly when defining the test or in your cypress.config.js file.

Also, before launching the accessibility analysis, ensure that what you want to analyze is fully rendered on the page. Only DOM elements that are visible in the browser viewport will be considered, as per the axe-core® plugin (hidden elements will be ignored).

describe('Accessibility Test', () => {
  beforeEach(() => {
    cy.visit('http://example.com');
  });

  it('should check accessibility of the page', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility();
  });
});

Specify Context and Options Usage

describe('Accessibility Tests', { tags: ['@accessibility'] }, () => {
  beforeEach(() => {
    cy.visit('http://example.com');
  });

  it('Default analysis', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility();
  });

  it('All levels of severity', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility(null, { includedImpacts: ['critical', 'serious', 'moderate', 'minor'] });
  });

  it('Disable rules "contrast" and "valid-lang"', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility(null, { rules: { 'color-contrast': { enabled: false }, 'valid-lang': { enabled: false } } });
  });

  it('Disable report generation', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility(null, { generateReport: false, includedImpacts: ['critical', 'serious', 'moderate', 'minor'] });
  });

  it('Provide context as CSS selector and only best-practice', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility(['div[role="banner"]', 'ul'], { includedImpacts: ['critical', 'serious', 'moderate', 'minor'], runOnly: ['best-practice'] });
  });

  it('Provide context as HTML Element and all levels of severity', { defaultCommandTimeout: 15000 }, () => {
    cy.document().then((doc) => {
      cy.checkAccessibility(doc.getElementById('my-navigation'), { includedImpacts: ['critical', 'serious', 'moderate', 'minor'] });
    });
  });

  it('Provide context as HTML NodeList', { defaultCommandTimeout: 15000 }, () => {
    cy.document().then((doc) => {
      cy.checkAccessibility(doc.querySelectorAll('div[role="banner"], ul'), { includedImpacts: ['critical', 'serious', 'moderate', 'minor'] });
    });
  });

  it('Provide context as "exclude" and "include"', { defaultCommandTimeout: 15000 }, () => {
    cy.checkAccessibility({ exclude: 'li', include: 'li:nth-child(2)' }, { includedImpacts: ['critical', 'serious', 'moderate', 'minor'] });
  });

  it('Custom colors by severity', {defaultCommandTimeout: 15000}, () => {
    const customImpactStyling = {
        critical: { icon: '🔴', style: 'fill: #DE071B; fill-opacity: 0; stroke: #DE071B; stroke-width: 10;' },
        serious:  { icon: '🟢', style: 'fill: #42C600; fill-opacity: 0; stroke: #42C600; stroke-width: 7;' },
        moderate: { icon: '🟣', style: 'fill: #886DE7; fill-opacity: 0.3; stroke: #886DE7; stroke-width: 6; stroke-dasharray: 5,3;' },
        minor:    { icon: '🔵', style: 'fill: #4598FF; fill-opacity: 0; stroke: #4598FF; stroke-width: 14; ' },
        fixme:    { icon: '🪓' }
    }

    cy.checkAccessibility(null, { impactStyling: customImpactStyling, includedImpacts: ['critical', 'serious', 'moderate', 'minor'] })
  });
});

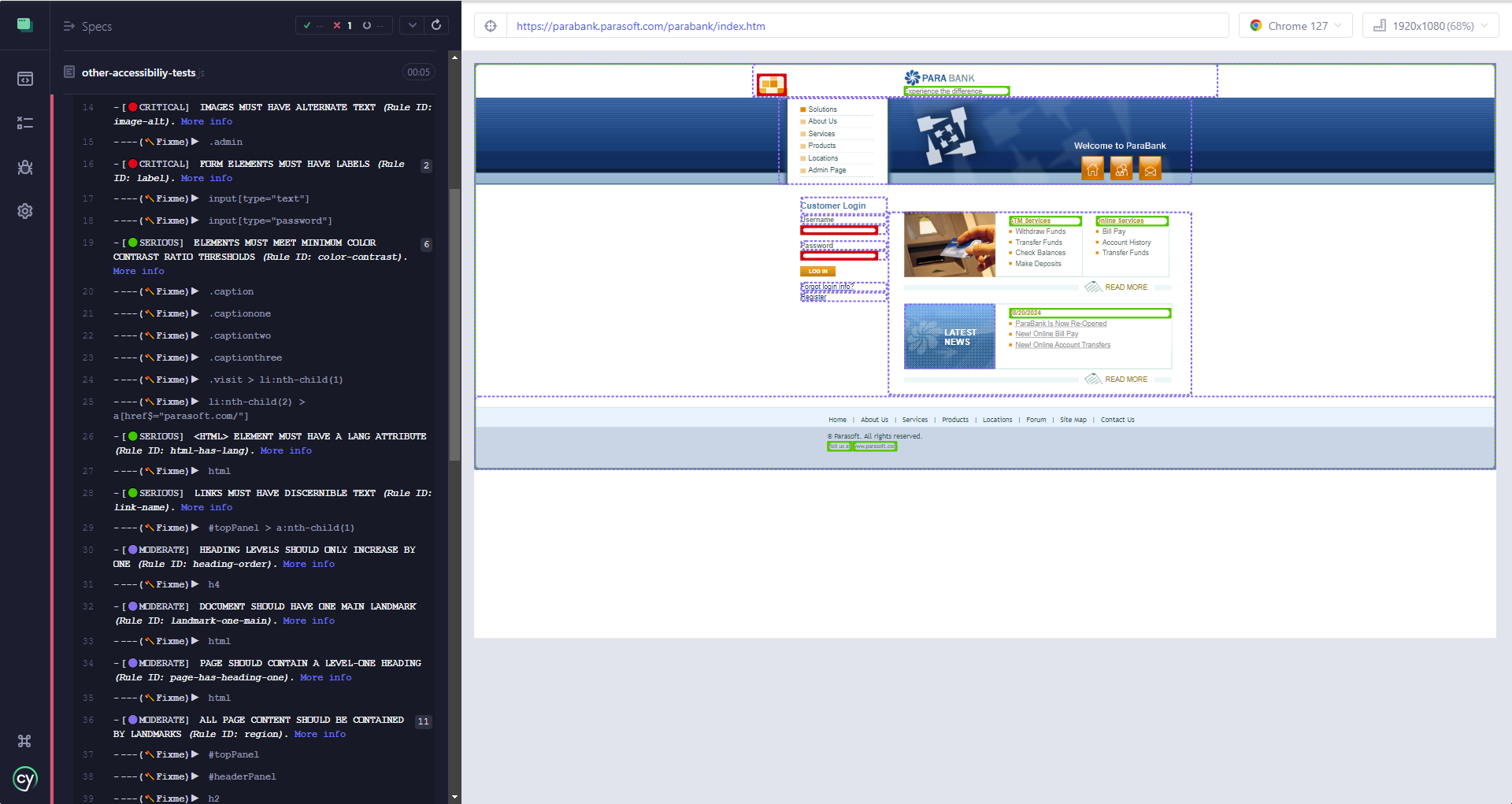

All the accessibility violations are shown in the Cypress log, ordered by severity, and are also graphically highlighted on the page, enclosed in a bounding box colored according to the severity level.

Styles by default: Critical 🟥, Serious 🟧, Moderate 🟨, Minor 🟦

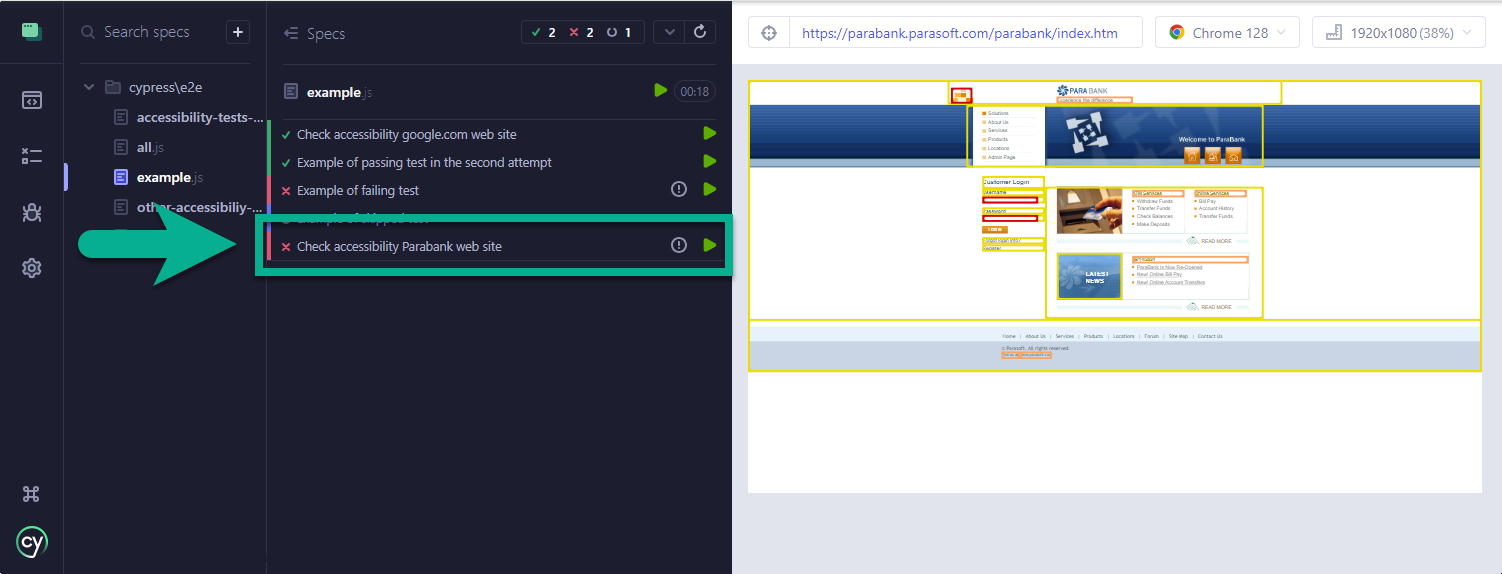

If there are any violations for the selected rules used in the analysis, the test will fail.

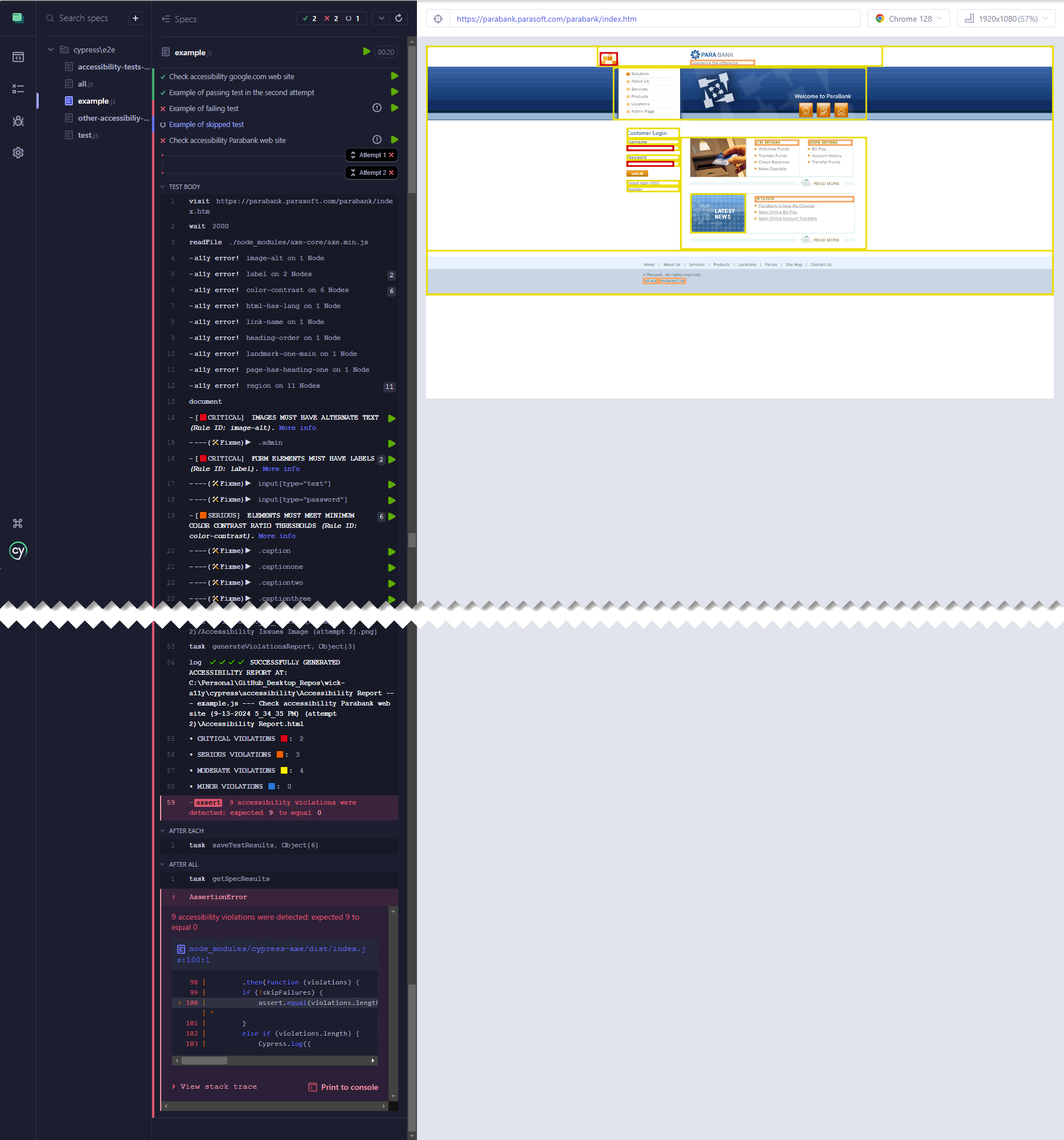

For each test, it shows a summary of the accessibility violations categorized by their severity in the Cypress Log at the end of the test.

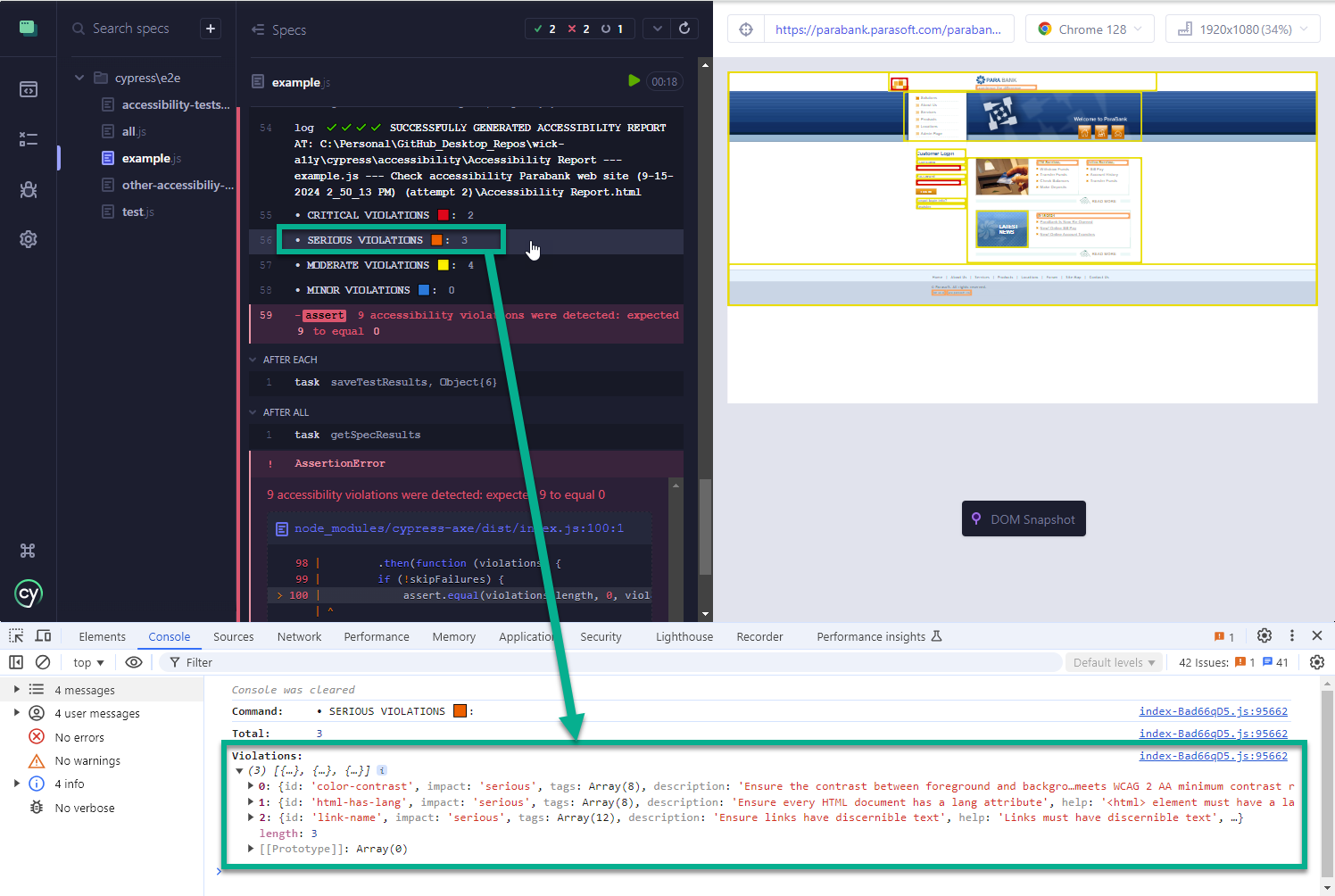

By clicking on one of the severity groups in the summary, the details for all the violations of that severity type will be shown in the browser console.

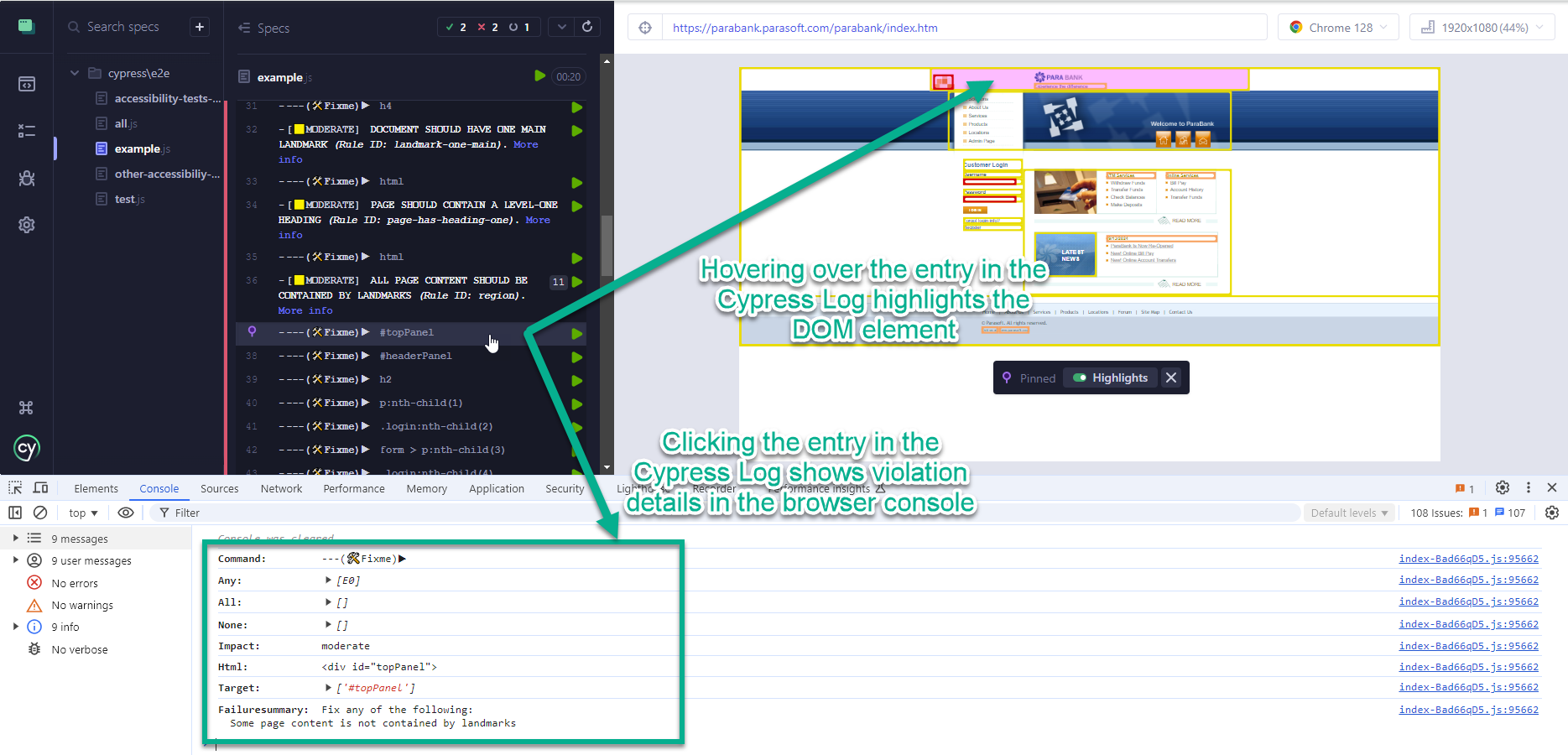

To identify, in the page, which HTML element is affected by an accessibility violation, mouseover the specific violation in the Cypress log, and that element will be highlighted on the page. To know the details about the accessibility issue, click on the violation in the Cypress log and those details will be shown in the browser console.

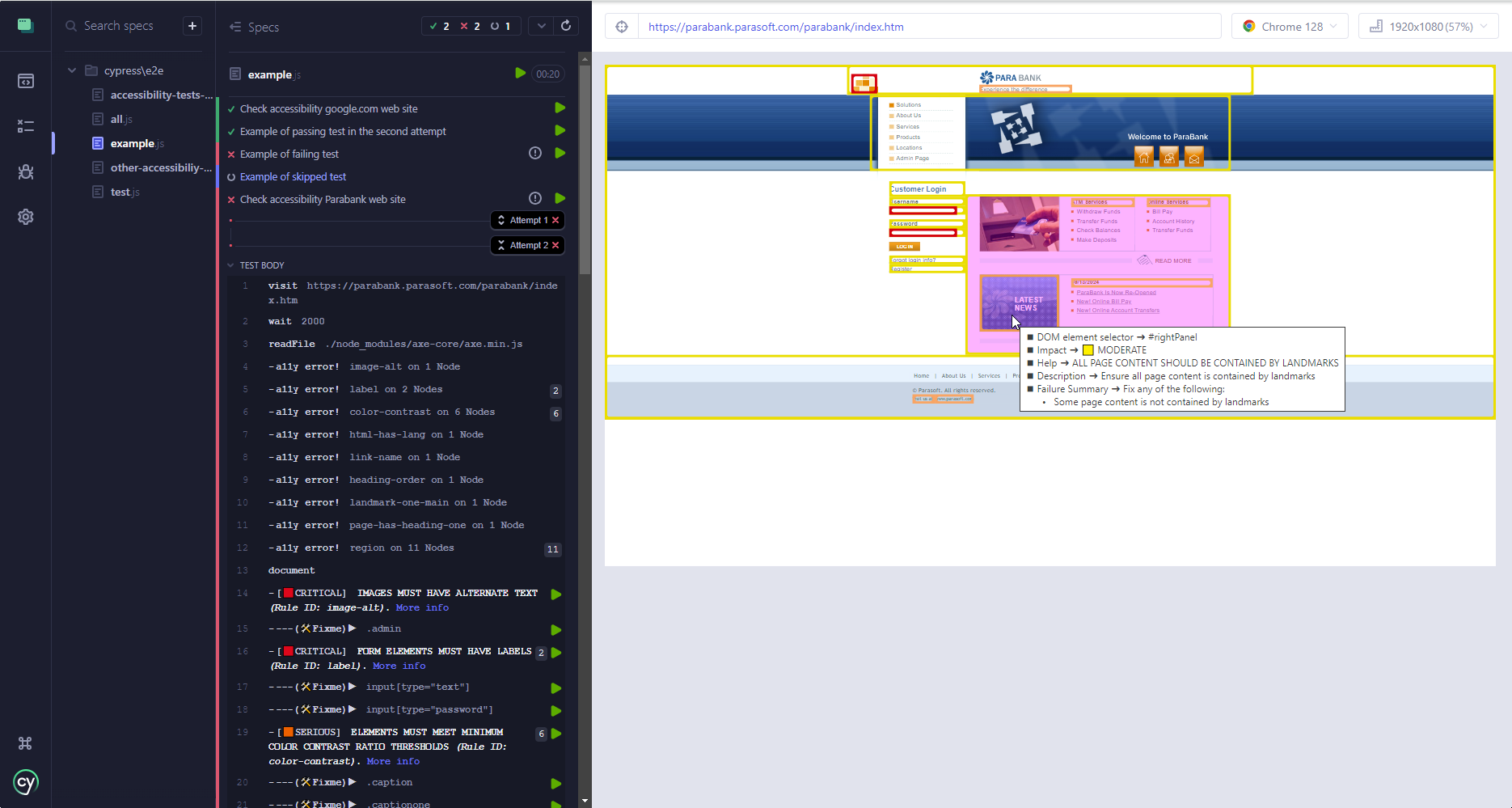

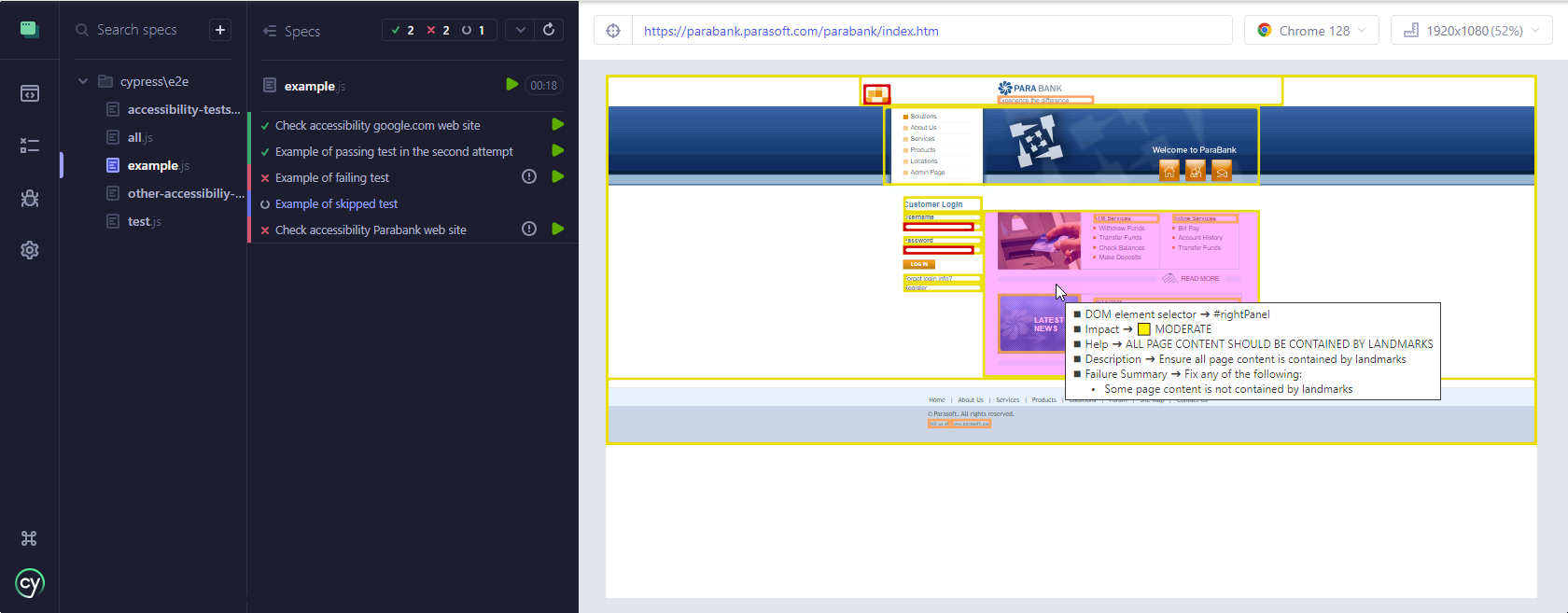

When hovering over a specific DOM element with a violation on the page in the Cypress runner, the element will be highlighted graphically, and a tooltip will appear showing the violation information. This feature allows you to quickly identify and understand accessibility issues directly on the page, providing an immediate and intuitive way to address them.

The wick-a11y plugin provides users with audible information about the accessibility analysis results executed in the suite. Audible analysis is available at all levels through the Cypress Log and by clicking affected DOM elements directly on the web page in the Cypress runner. Accessibility voice is only available when tests are run in the Cypress runner (npx cypress open), and the Cypress environment variable enableAccessibilityVoice is set to true.

This feature is particularly useful for users who rely on auditory information to enhance their understanding and streamline the process of accessibility testing and remediation.

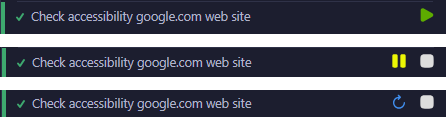

The analysis at a specific level in the Cypress Log can be heard by clicking the play button beside it. While the voice is playing, the user can pause, resume, and stop the voice analysis using the respective buttons.

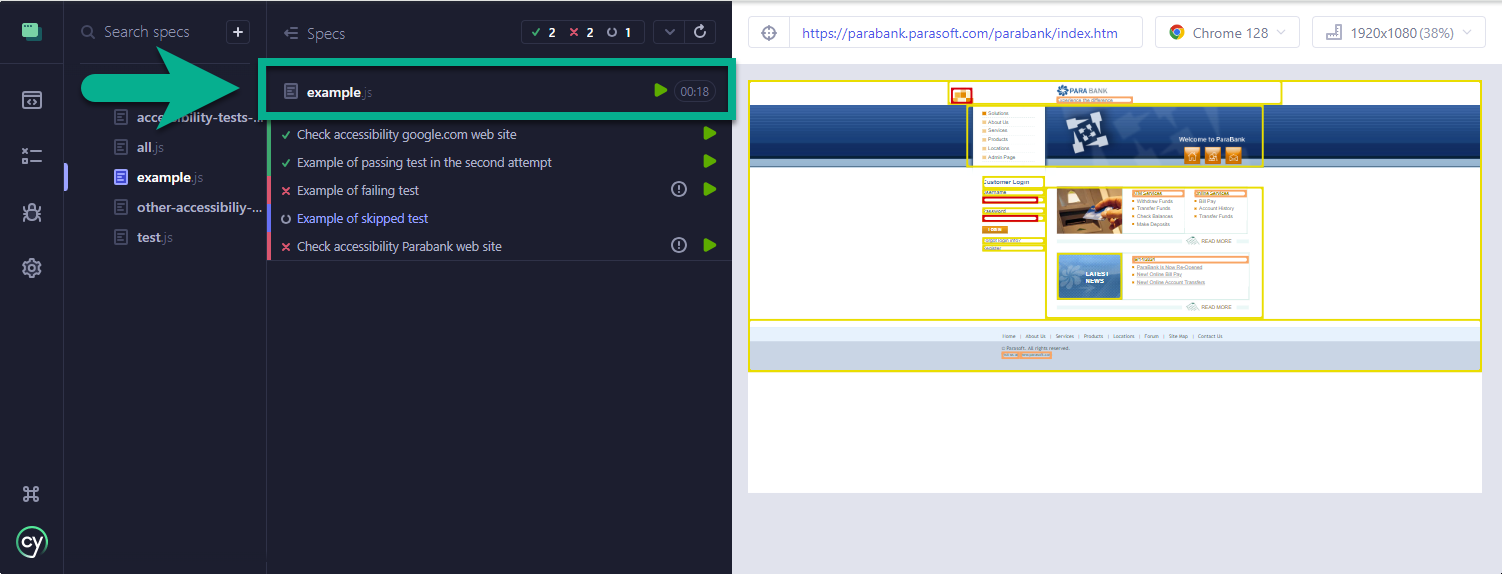

The accessibility voice feature at the suite level in the Cypress Log provides audible feedback that summarizes the accessibility analysis for the entire test suite. This includes:

• Total number of tests run
• Number of tests passed
• Number of tests failed due to accessibility violations
• Number of tests failed for other reasons
• Number of tests skipped or pending

Watch the video

The accessibility voice feature at the test level in the Cypress Log provides audible feedback that summarizes the accessibility analysis for each individual test. This includes:

• Total number of accessibility violations
• Number of critical violations
• Number of serious violations
• Number of moderate violations
• Number of minor violations

Watch the video

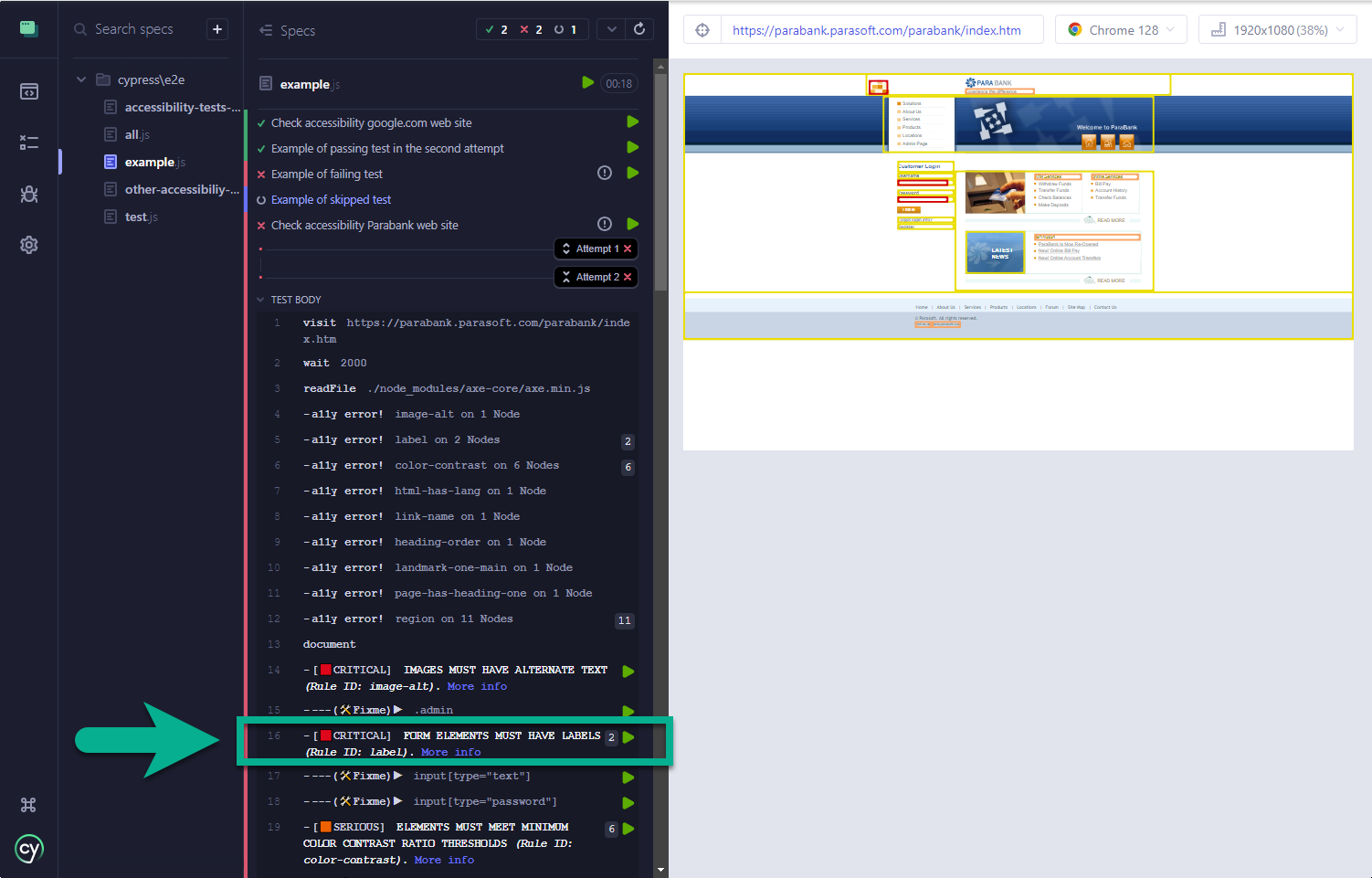

The accessibility voice feature at the violation type level in the Cypress Log provides audible feedback that includes:

• The number of DOM elements found with that violation
• The severity of the violation
• A description of the violation

Watch the video

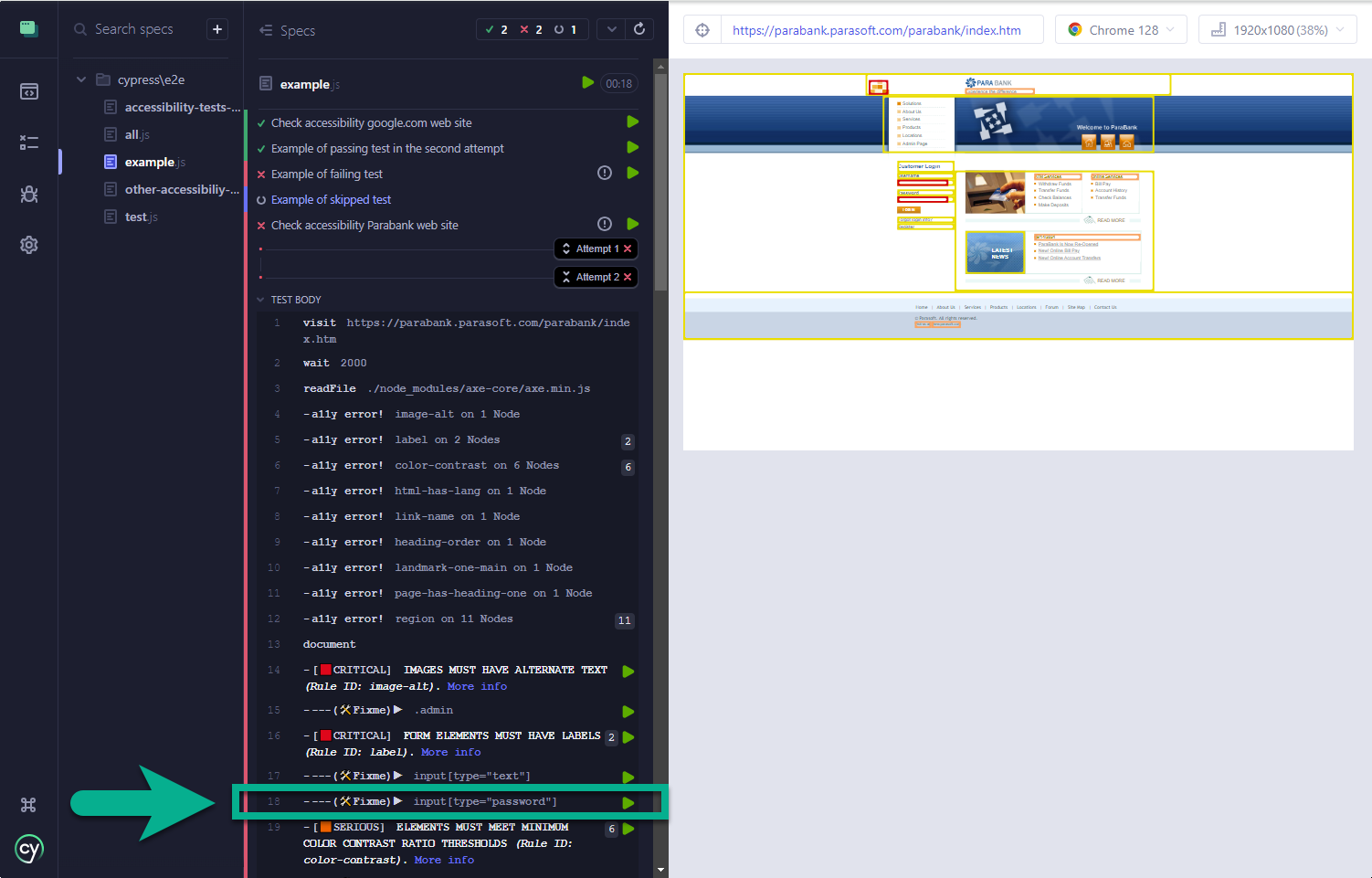

The accessibility voice feature at the DOM element level in the Cypress Log provides audible feedback that includes:

• The selector for the element
• The severity of the violation
• A description of the violation
• A summary of the actions needed to fix the issue

Watch the video

The wick-a11y plugin also provides accessibility voice for a DOM element by clicking directly on the colored box representing the violation in the web page. To cancel the playback, the user can simply click outside the web page area. The audible feedback provides the following information:

• The selector for the element
• The severity of the violation
• A description of the violation
• A summary of the actions needed to fix the issue

Watch the video

When the option generateReport is true (which is the default setting), an HTML report with all the accessibility violation details will be generated. By default, accessibility HTML reports are created in the cypress/accessibility folder. You can customize this location by setting the accessibilityFolder parameter in your cypress.config.js configuration file.

For each test that checks accessibility using the cy.checkAccessibility() command, a directory will be created in the accessibility folder.

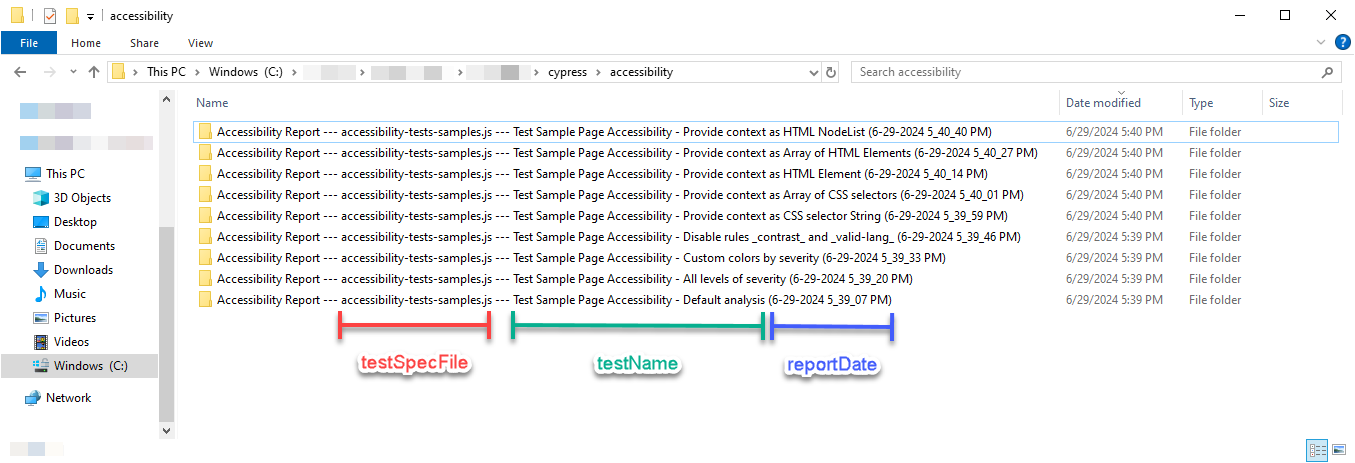

The directory will be named in the following format:

Accessibility Report --- <testSpecFile> --- <testName> (<reportDate>)

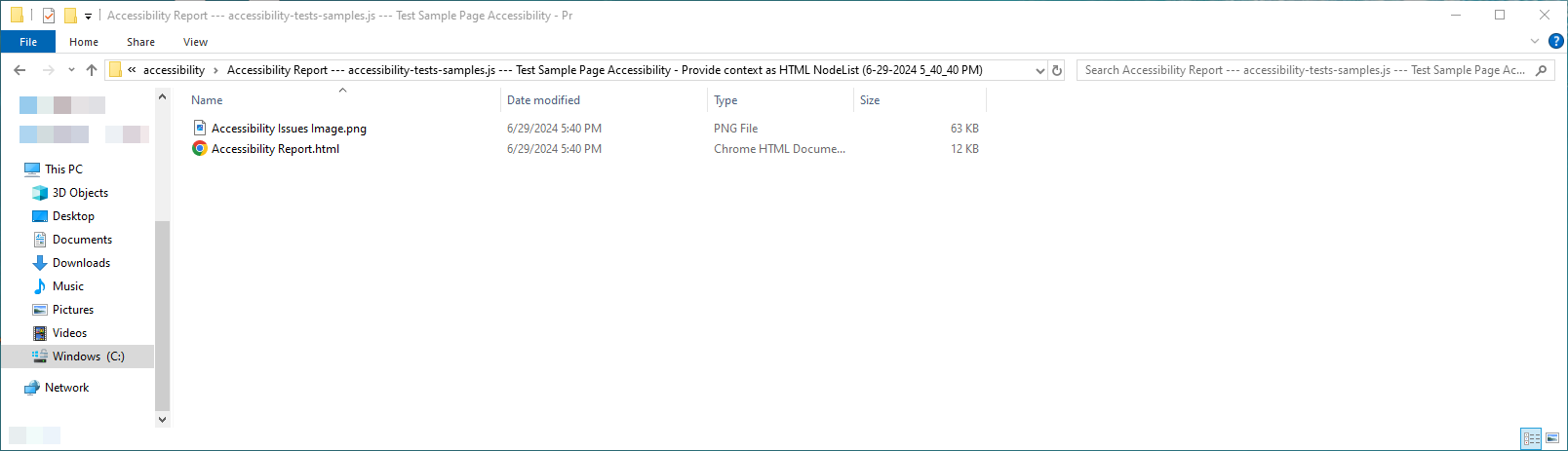

Within the newly created test folder, you will find two files:

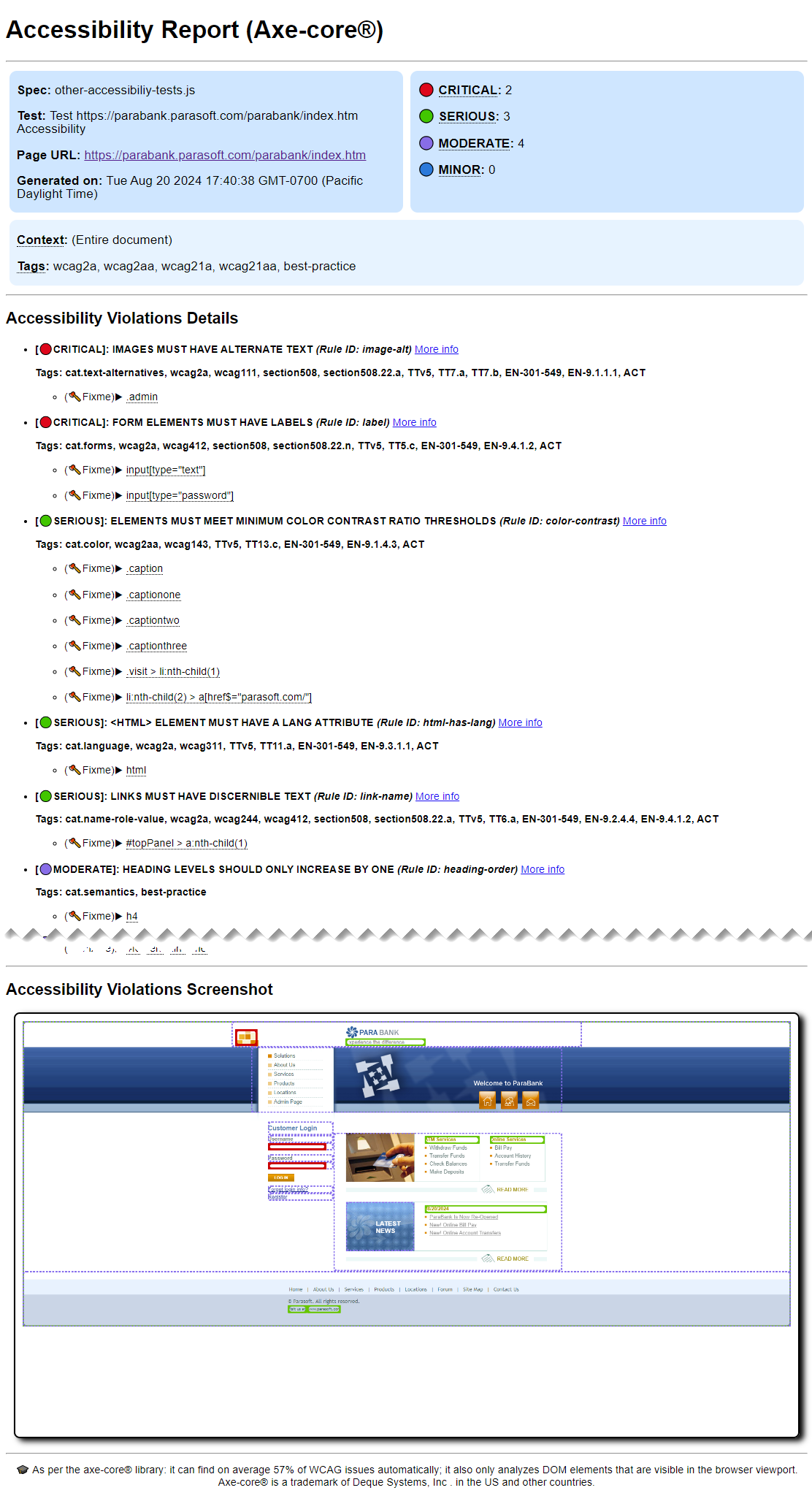

• Accessibility Report.html - This file contains the complete accessibility report, detailing the violations for that specific test.
• Accessibility Issues Image.png - This file includes a screenshot of the issues for visual reference.

The image file is also referenced within the HTML report.

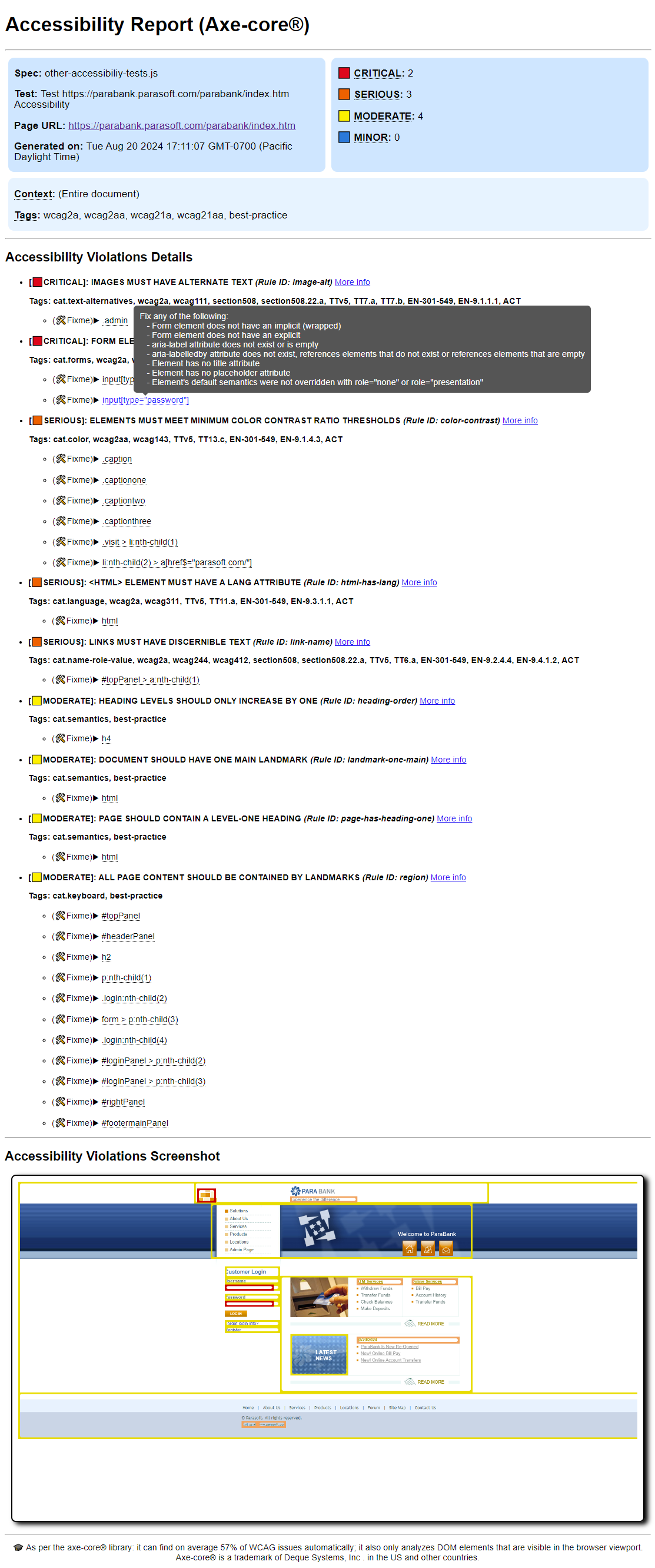

In the report, accessibility issues are ordered by severity, and at the end of the report, an image with a screenshot of the page with the violations colored based on severity is included. More details on how to fix each of those violations can be seen by hovering over them in the HTML report.

✔️ Note: The HTML accessibility report generated by the plugin complies with all severity levels—critical, serious, moderate, and minor. It also adheres to the tags wcag2a, wcag2aa, wcag21a, wcag21aa, and best-practice.

It is possible to configure styles for the different types of violation severity beyond the default red, orange, yellow, and blue.

Configured custom styles are displayed in the Cypress runner:

Same custom styles shown in the HTML report:

• Only allows running one accessibility analysis with the command cy.checkAccessibility() per test.

• Only the last test run in the suite allows graphical interaction with the web page.

• When an element is "Pinned" in the Cypress Log, the accessibility voice for a DOM element by clicking directly on the colored box representing the violation on the web page is disabled (due to the behavior of the Cypress runner in the interactive page).

• At this moment, it does not flag suspicious violations considered by the AJV validator as inconclusive.

MIT License. See the LICENSE file for more details.

• Fix issue in creating HTML reports caused by isNodeList() left behind in the refactor into multiple source files

• Fix issue with voice buttons not showing for a test when retries.openMode:0 in cypress.config.js

• Added support for voice in the Cypress Log and when clicking on DOM elements with violations on the page
• Introduced a new summary for each test in the Cypress Log, detailing accessibility violations categorized by their severity

• Fix issue with accessibilityFolder configuration parameter when missing char / at the end
• Add axe-core® to the source code and documentation to be compliant with Deque trademark
• Created .gitignore

• Fix issue regarding highlighting violation when hovering in the cypress runner during the analysis screenshot
• Fix reported issue when multiple retries are enabled #2

• Implemented tooltip with violations details when hovering over DOM Element in the Cypress runner
• Change color highlighted DOM elements from the Cypress log to match color used when hovering.

• Fix typo in README.md

• Initial release with core functionalities.
• Comprehensive configuration options for AXE analysis.
• Detailed logging and report generation for accessibility violations.

• Joan Esquivel Montero - Video: Cypress Accessibility Testing powered by WICK-A11Y

• cypress.io - Blog by Mark Noonan: Open Source Accessibility Plugins in Cypress

• James Wadley - Blog: Let's talk about wick-a11y…
